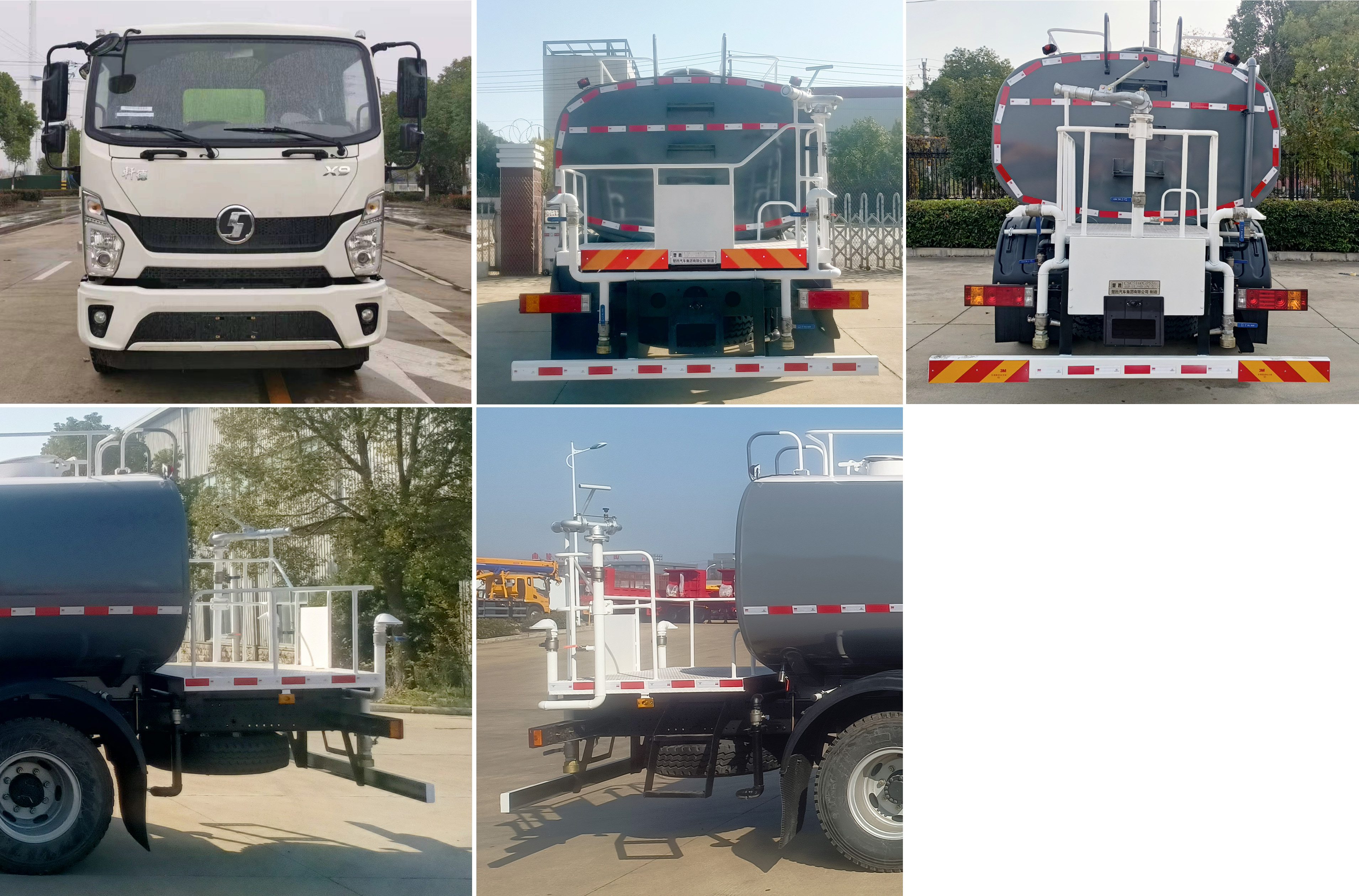

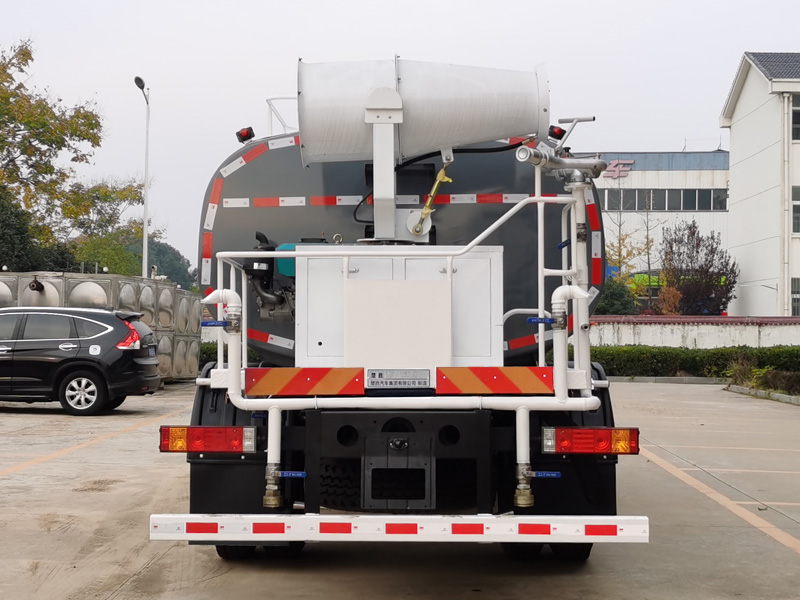

| 楚勝牌CSC5160GPSS6型綠化噴灑車 | |||
|---|---|---|---|
| 車輛名稱: | 綠化噴灑車 | 公告型號: | CSC5160GPSS6 |
| 公告批次: | 389 | 發布日期: | 20241204 |
| 產品號: | 目錄序號: | (十七)71 | |
| 中文品牌: | 楚勝牌 | 底盤型號: | SX1160GP6411 |
| 企業名稱: | 楚勝汽車集團有限公司 | 燃油: | |
| 企業地址: | 隨州市經濟開發區季梁大道9號 | 免征: | |
| 生產地址: | 隨州市經濟開發區季梁大道9號 | 環保: | |
| 免檢說明 | |||
| 免檢: | 免檢有效期止: | ||
| 公告狀態 | |||
| 公告狀態: | 公告生效期止: | ||
| 楚勝牌CSC5160GPSS6型綠化噴灑車主要技術參數 | |||
| 外形尺寸: | 8350,8250,8150,7920,7820,7720,7850,7750,7650,7420,7320,7220×2550,2500×3100,2960 (mm) | 貨箱尺寸: | ×× (mm) |
| 總質量: | 16000 | 載質量利用系數: | |
| 整備質量: | 6480,6300 | 額定載質量: | |
| 掛車質量: | 半掛鞍座: | ||
| 駕駛室: | 前排乘客: | 2,3 | |
| 接近角/離去角: | 20/19,20/36,16/19 | 前懸/后懸: | 1300/2200,1300/1300,1200/2200,1300/1550,1300/2150 |
| 軸荷: | 5600/10400 | 軸距: | 4100,4500,3950 |
| 軸數: | 2 | 最高車速: | 89 |
| 油耗: | 彈簧片數: | 9/11+5,9/11+8,8/10+8,8/10+6,9/10+6,3/4+3,10/10+8,10/11+8 | |
| 輪胎數: | 6 | 輪胎規格: | 9.00R20,9.00R20 16PR |
| 前輪距: | 1770,1937,1810,1650,1700,1790,1830 | 后輪距: | 1700,1818,1725,1595,1650,1750,1810 |
| 制動前: | 制動后: | ||
| 制操前: | 制操后: | ||
| 轉向形式: | 啟動方式: | ||
| Vin車輛識別代碼: | |||
| 發動機參數 | |||
| 發動機型號: | 發動機生產企業 | 排量 | 功率/馬力(PS): |
| D40TCIF1 | 昆明云內動力股份有限公司 | 4052 | 135 |
| YCS04200-68 | 廣西玉柴機器股份有限公司 | 4156 | 147 |
| D36TCIF1 | 成都云內動力有限公司 | 3610 | 130 |
| YCY30170-61 | 廣西玉柴機器股份有限公司 | 2970 | 125 |
| 車輛燃料參數 | |||
| 燃料種類: | 柴油 | 依據標準: | |
| 底盤排放標準 | GB17691-2018國Ⅵ | ||
| 其他 | |||

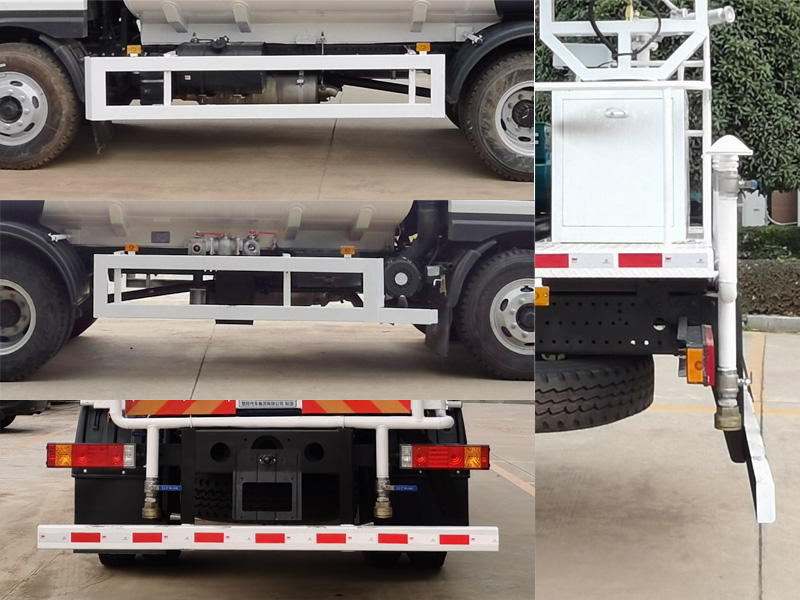

| 該車用于園林綠化,主要專用裝置為噴灑總成.罐體總?cè)萘?10.3立方米,罐體有效容積:9.81立方米,運輸介質:丙酮水溶液,密度950千克/立方米.罐體外形尺寸(長×長軸×短軸)(mm): 4200×2380×1490,4180×2330×1530,4200×2350×1450,4000×2350×1560.側、后防護材料均為Q235,螺栓連接,后防護截面尺寸120×50mm,下邊緣離地高480mm.ABS系統型號/生產廠家:ZQFB-V/西安正昌電子股份有限公司.僅選用軸距4100,3950.整車外形尺寸長/前伸量/軸距/前懸/后懸對應關系為:8350/500/4100/1300/2450,8350/500/4100/1200/2550,8250/500/4100/1300/2350,8250/500/4100/1200/2450,8150/500/4100/1300/2250,8150/500/4100/1200/2350,7920/500/4100/1300/2020,7920/500/4100/1200/2120,7820/500/4100/1300/1920,7820/500/4100/1200/2020,7720/500/4100/1300/1820,7720/500/4100/1200/1920,7850/0/4100/1300/2450,7850/0/4100/1200/2550,7750/0/4100/1300/2350,7750/0/4100/1200/2450,7650/0/4100/1300/2250,7650/0/4100/1200/2350,7420/0/4100/1300/2020,7420/0/4100/1200/2120,7320/0/4100/1300/1920,7320/0/4100/1200/2020,7220/0/4100/1300/1820,7220/0/4100/1200/1920,8250/500/3950/1300/2500,8150/500/3950/1300/2400,8150/500/3950/1200/2500,7920/500/3950/1300/2170,7920/500/3950/1200/2270,7820/500/3950/1300/2070,7820/500/3950/1200/2170,7720/500/3950/1300/1970,7720/500/3950/1200/2070,7750/0/3950/1300/2500,7650/0/3950/1300/2400,7650/0/3950/1200/2500,7420/0/3950/1300/2170,7420/0/3950/1200/2270,7320/0/3950/1300/2070,7320/0/3950/1200/2170,7220/0/3950/1300/1970,7220/0/3950/1200/2070.選裝駕駛室前部無電子水炮,選裝后平臺無霧炮,選裝后平臺樣式.隨底盤選裝Q100標識,選裝國六標簽,選裝遮陽罩及遮陽罩噴字,選裝側圍玻璃.選裝罐體右側高位花灑. | |||
| 反光標識參數 | |||
| 標識企業: | 浙江龍游道明光學有限公司,常州華日升反光材料有限公司,明尼蘇達礦業制造膜結構(上海)有限公司 | 標識商標: | DM,通明,3M |
| 標識型號 | DMCT1000,TM1200-1,983D | ||
