| 外形尺寸: |
6150,6000×2280,2250,2200,2150×3280,3200,3150,3000,2950,2850,2700 (mm) |
貨箱尺寸: |
×× (mm) |
| 總質量: |
7360 |
載質量利用系數: |
|
| 整備質量: |
7230,7165 |
額定載質量: |
|
| 掛車質量: |
|
半掛鞍座: |
|
| 駕駛室: |
|
前排乘客: |
2,3 |
| 接近角/離去角: |
27.7/15,19/21,20/18 |
前懸/后懸: |
1075/920,1075/1565,1075/1605,1150/1415,1150/920,1135/1545,1170/1415,1170/1470,1170/1510,1150/1190,1150/1140,1170/1200,1170/1375 |
| 軸荷: |
2640/4720 |
軸距: |
2650,2950,3300,3600,3650,2800,2850 |
| 軸數: |
2 |
最高車速: |
89 |
| 油耗: |
|
彈簧片數: |
6/6+5,3/3+3,5/4+3,6/4+3,6/5+2,6/3+3,3/6+5,3/3+2,2/2,8/9+7,8/8 |
| 輪胎數: |
6 |
輪胎規格: |
7.00R16LT 14PR,7.50R16LT 14PR |
| 前輪距: |
1525,1530,1565,1645,1655,1600,1540 |
后輪距: |
1510,1520,1580,1550 |
| 制動前: |
|
制動后: |
|
| 制操前: |
|
制操后: |
|
| 轉向形式: |
|
啟動方式: |
|
| Vin車輛識別代碼: |
|

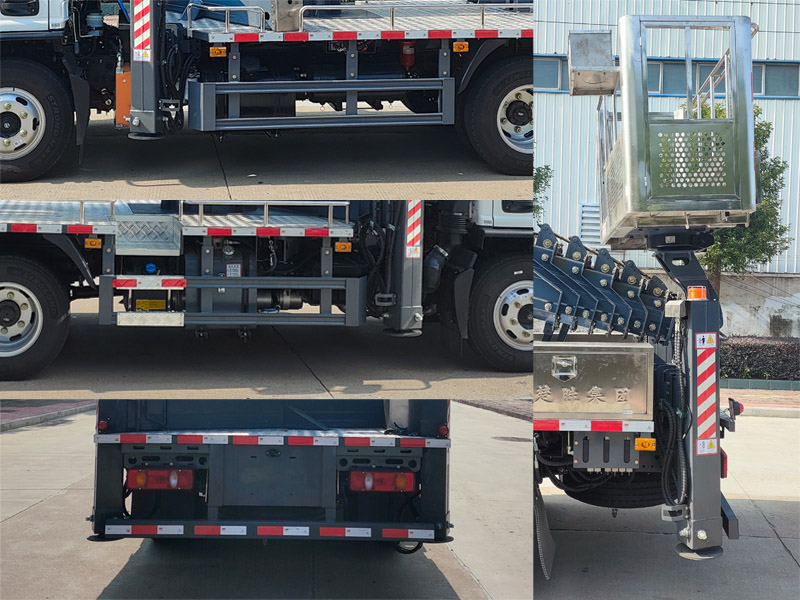

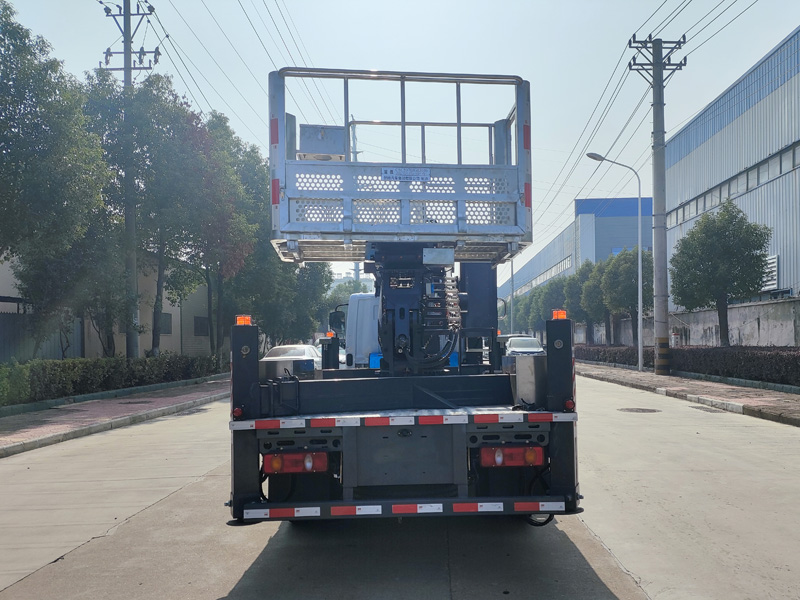

| 該車用途為搶修電力、通訊、路燈等高空作業,主要專用裝置為:液壓機構、臂架、轉臺、工作平臺、支腿等,通過臂架伸縮和轉臺回轉,將工作平臺舉升至作業位置.側、后防護材料均為Q235,側防護為螺栓連接;后防護焊接,后防護截面尺寸:100×50,下邊緣離地高430mm;ABS型號及生產廠家:3550D-1010C2000/東風福利企業公司,J ABS/焦作博瑞克控制技術有限公司;整車外形尺寸長/軸距/前懸/后懸對應關系為:6150/3300/1075/1775,6150/3300/1150/1700,6150/3300/1135/1715,6150/3300/1170/1680,6000/3300/1075/1625,6000/3300/1150/1550,6000/3300/1135/1565,6000/3300/1170/1530.臂架和支腿上裝有作業指示燈,僅在車輛駐車作業時開啟. |
